Dyi Gainclone Lm 3886

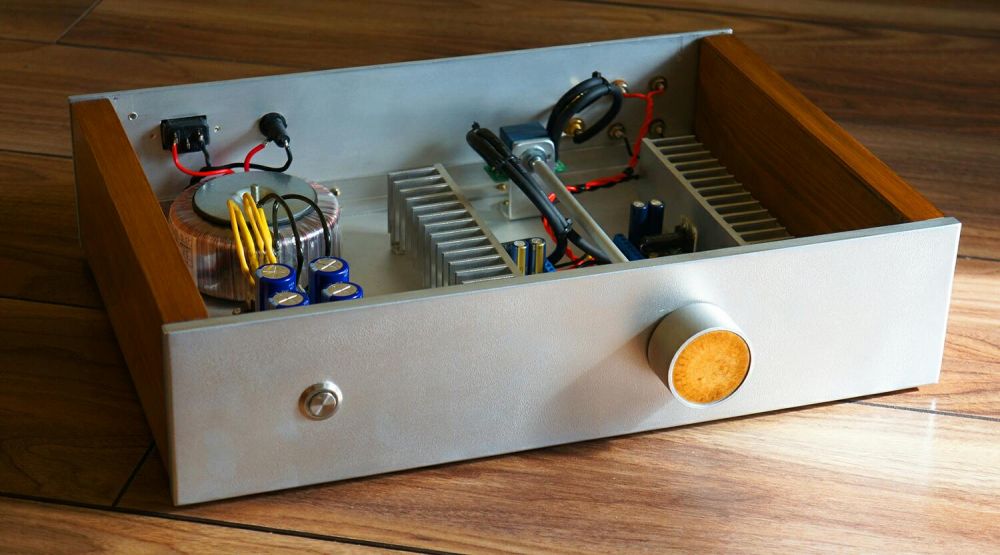

I've made gainclone amplifier that uses a LM3886 chip. It's one of the best compact HiFi amplifiers. It is a Class AB-A (conjugate) amplifier that has a fully symmetrical structure (push-pull), this mean that the sine waves produced, will produce a + , - output. A 25 volt (+/- Dual Rail), 5 Ampere, toroidal transformer was used to supply electricity for the amp. There's also a PCB Layout provided for the project. I found an old CPU processor attached to a gorgeous heatsink & fan, I recycled both of them and drilled holes for it to be mounted on the LM3886 chips.
The LM3886 is specified for ±28 V supply, when used with 4 Ohm loads and ±35 V supply, when used with 8 Ohm loads. Those figures are valid, when the amplifier is loaded. At idle the voltages may be higher. An unregulated supply will sag, when loaded. You can take advantage of that, as shown in the BPA-200 application note.
It created with the purpose is to share free games for all of you. Sao hollow fragment pc. If the website becomes a well – known one, this will a motivation push me to continue updating more free games, sharing to people. I am so happy when you connect to my website. To a new website, it does not have much your attention, but I wish you could give me a favour in advertising, introducing it to people by sharing its link for your friends, family members through out Facebook, twitter and other websites. At the present, more than 6000 free games are loaded on the website and it has still been in process of building, finishing the contents, so I hope that most of free games could be updated as soon as possible.
- Maximum Output Power: 68W RMS - 108W Peak
- Frequency Response: 7Hz-25kHz (Filtered ⇒Linkwitz)
- THD: %0.03 at 60W
- SNR: 110dB at 60 W - 92.5dB at 1W
- Output Class: AB-A (Conjugate)
- Auxiliary Features: DC/AC Short circuit protection and thermal protection.
Diy Gainclone Lm3886
- Working Voltage/Power: 12-94 Volts (Dual Rail), 1-10 Amperes- Audio Features: Input Mute Funtion (100% silent = no input)
Too bad I had a late documentation, that's why I only have a few pictures of the steps and procedures. Due to the late documentation, I had to get images from the original source. Some of the pictures are not mine, there are no claims that the PCB designs are mine nor the diagrams, although there where some modifications made by me for the amp.
What Is A Gainclone?
Back in 1999, relatively unknown manufacturer
47-Labs released the 'Gaincard' to rave reviews. It immediately caused controversy because it was based around a $5 power amplifier IC (Integrated Circuit), yet a typical setup would cost you around $3300. A Gainclone in the other hand refers to any DIY amplifier that uses a LM3875/ LM3886 as it's main component. What's So Special About It?
The gainclone only uses small amounts of space, it's built with a minimal supply of components, yet giving a great HiFi result. It beats the hell out of those modern HiFi amps, it produces 2x68 watts
Diy Lm3886 Chip Amplifier (gainclone) Kit
of power, with a Total Harmonic Distortion of 0.03%THD and built on a 2x3 PCB board! So why doesn't the audio industry use it? I'm not really sure. All of these sounds 'too good to be true', I recommend this project for those who are still starting on their DIY HiFi amp hobby, since it only uses some few components.What's A Power Amp?
A power amp is a amplifier with no preamp, volume control, tone control, or any auxiliary devices attached to it. It's just pure simplicity.
